Guardian Ray Smart 7317 | Geiger Counter with Internal Pancake

Multipurpose professional Geiger counter with advanced functions

1. It's the best Geiger counter for the professional measurement of radioactivity designed and produced in Italy.
2. Equipped with a very sensitive sonda Geiger-Müller tipo pancake, mounted internally to the main body of the instrument.
3. Detects all types of ionizing radiation: Alfa, Beta Gamma and X -rays.
4. 2.8″ active matrix color LCD touch display with resolution 320×240 px
5. Ratemeter and Automatic Average function: with advanced algorithms.
6. Automatic Dose calculation function related to the exposure time
7. Software compensation on Geiger tube saturation, allowing particularly reliable measurements to be carried out
8. real-time visualization of: “SAT ERR (%)”, (probe saturation error), e “STAT ERR (%)”, (statistical error, also called confidence index)
9. Double Calibration Profile and Factory Calibration: preset with factory metrological calibration (Default) for immediate use; it also allows the user to store in permanent memory up to 2 custom coefficients (per Cs-137 e Co-60), can be recalled and excluded instantly via touch display.
10. It expresses maximum sensitivity and precision for this category of detectors.
11. It can connect to the Internet via integrated WiFi
12. Serial Terminal Emulation su reti Bluetooh
13. Software emulation of an Http Client,
14. Software emulation of a TCP Server,
15. Local radioactivity datalogger on microSD cards
16. Remote radioactivity datalogger on Cloud platform.
17. It can send measurements in real time on Android Application and on the Cloud

Our Guardian Ray Smart 7317, redefines the concept of the professional Geiger counter, and is the result of the best Made in Italy engineering.

I.O.T technology. it's in our Geiger Counter.

Guardian Ray Smart 7317 con sonda pancake, revolutionizes the traditional Geiger Counter. Thanks to the use of so-called technology: Internet of Things”, (IOT), it has become a detection tool “online” with full rights. Per “Internet of Things”, refers to the devices, instruments, installations, system, machines and tools that can be interconnected to the network and exchange information through it. These devices are basically the basis of the Internet of Things and are also defined “smart objects”.

Guardian Ray is a device “Smart”

We are referring to the possibility of connecting our instrument via its integrated WiFi module to any local network and also to the internet. Once connected to the network, the system date and time will be automatically updated and it will be possible to upload and immediately consult the radioactivity data on a dedicated web page of our free Cloud.

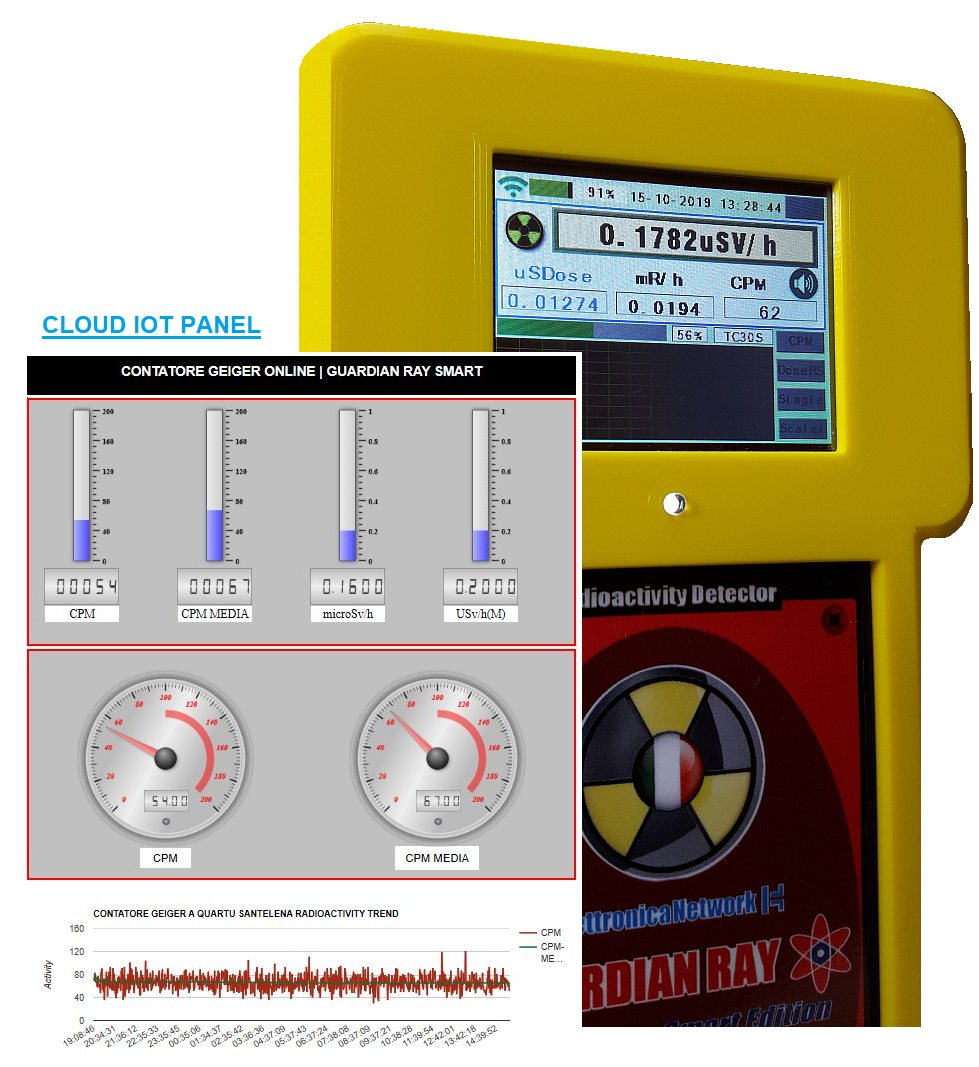

What is the Cloud server and how is it used

In practice they are web servers which in this specific case have been programmed to acquire the data on radioactivity sent to the network by our instruments and for their automatic publication in real time on specific web pages.. For example, it would be possible to use our Geiger counter also as a real control unit for the constant monitoring of radioactivity levels.

You can click on the link or image below to immediately view the environmental radioactivity data detected by our Geiger in real time in our laboratory in Quartu Sant'Elena (Cagliari).

We would like to point out that Guardian Ray Smart also supports double WiFi configuration, that is, it can function as a Client or as an Access Point.

Other ways of storing radioactivity data

Our Geiger Counter allows you to store data collected locally, which will now no longer be allocated to the internal memory, as happened in previous models, instead they will be automatically saved on very practical microSD cards, which despite their very small dimensions allow practically unlimited storage capacity .

Guardian Ray Smart It can show radioactive activity on the large color display by simultaneously translating it into different units of measurement, that is to say: in microSievert/h, in interRontgen/h, in CPM o in alternativa in CPS, while at the same time it calculates and displays the dose of ionizing radiation to which one is exposed over time.

It also works like a real one “Rate-Meter”, allowing in this special mode the execution of very precise measurements with fixed acquisition times, presettable from a minimum of 60 to a maximum of 10,000 seconds.

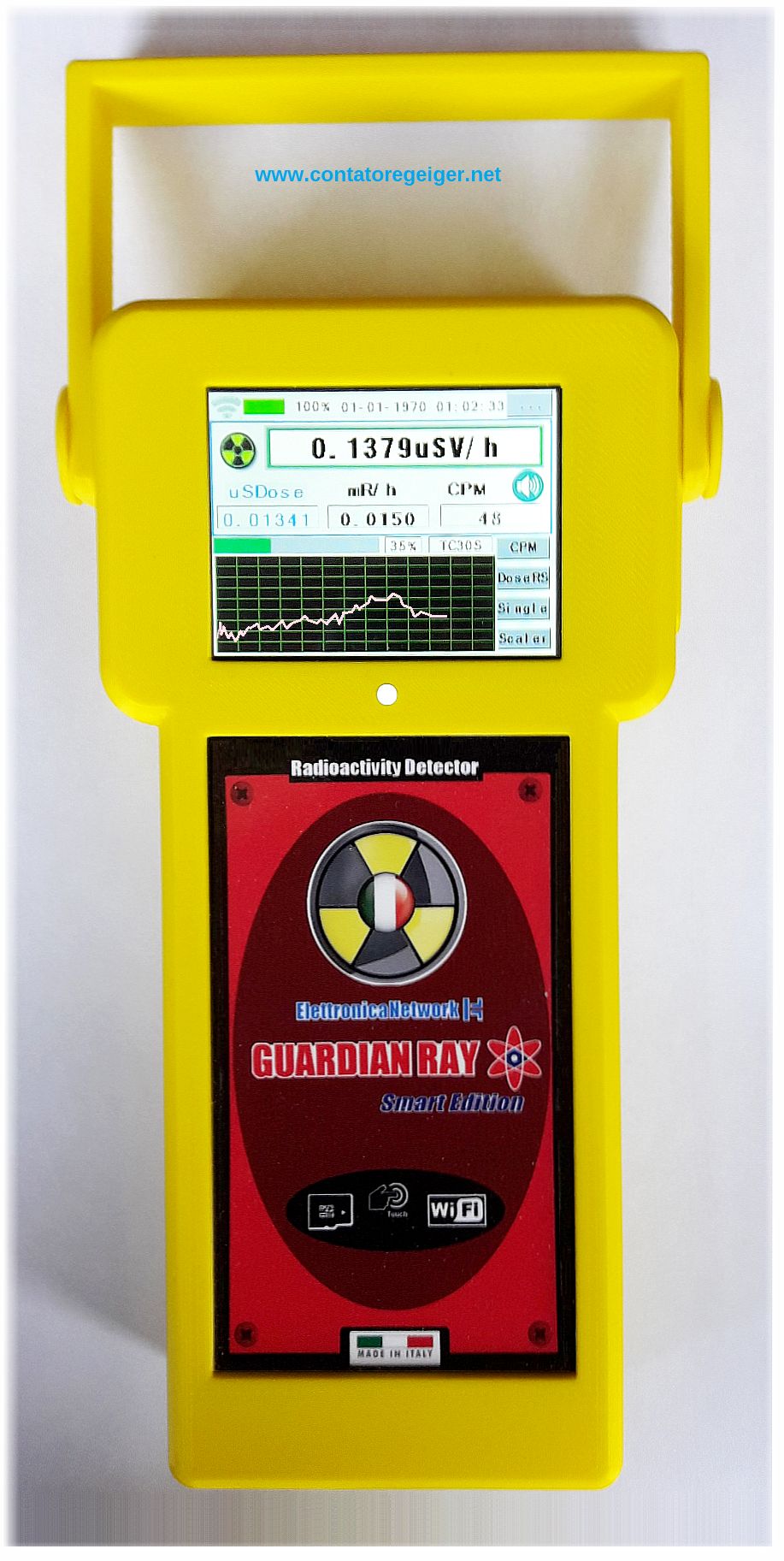

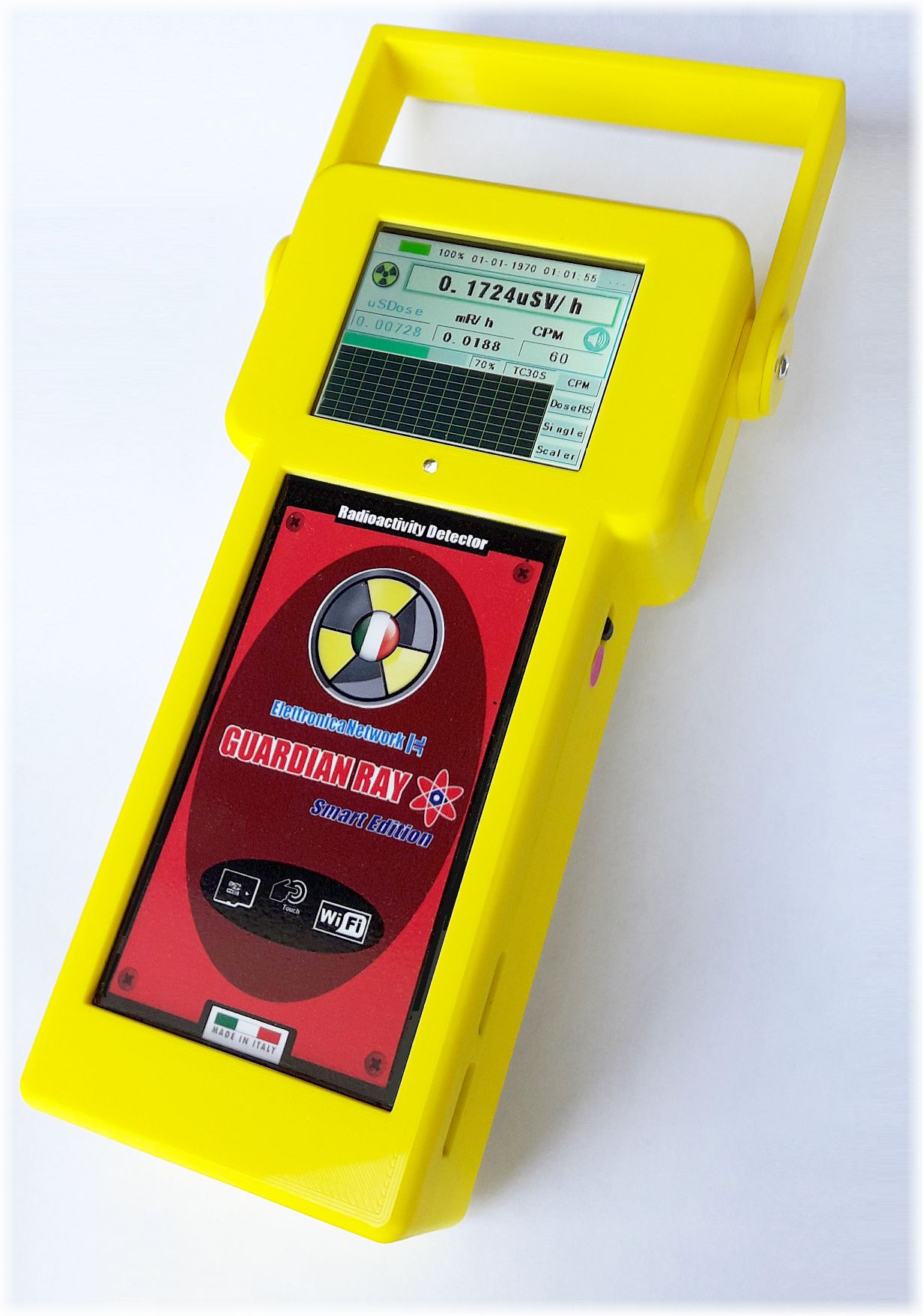

The approach is simpler and more intuitive than ever thanks to the modern color Touch display with active matrix.

In all versions “Smart”, It disappears “traditional” membrane keyboard which has been replaced by a modern display “touch” with active color matrix, which in this specific model is 2.8 inches.

The Geiger Muller Pancake Probe with which he is equipped, as well as detecting Alpha radioactivity, Beta, gamma and X-rays, it also has the interesting characteristic of being able to easily detect even very low energy ionizing radiation, which however are not perceived by economy class Geiger tubes.

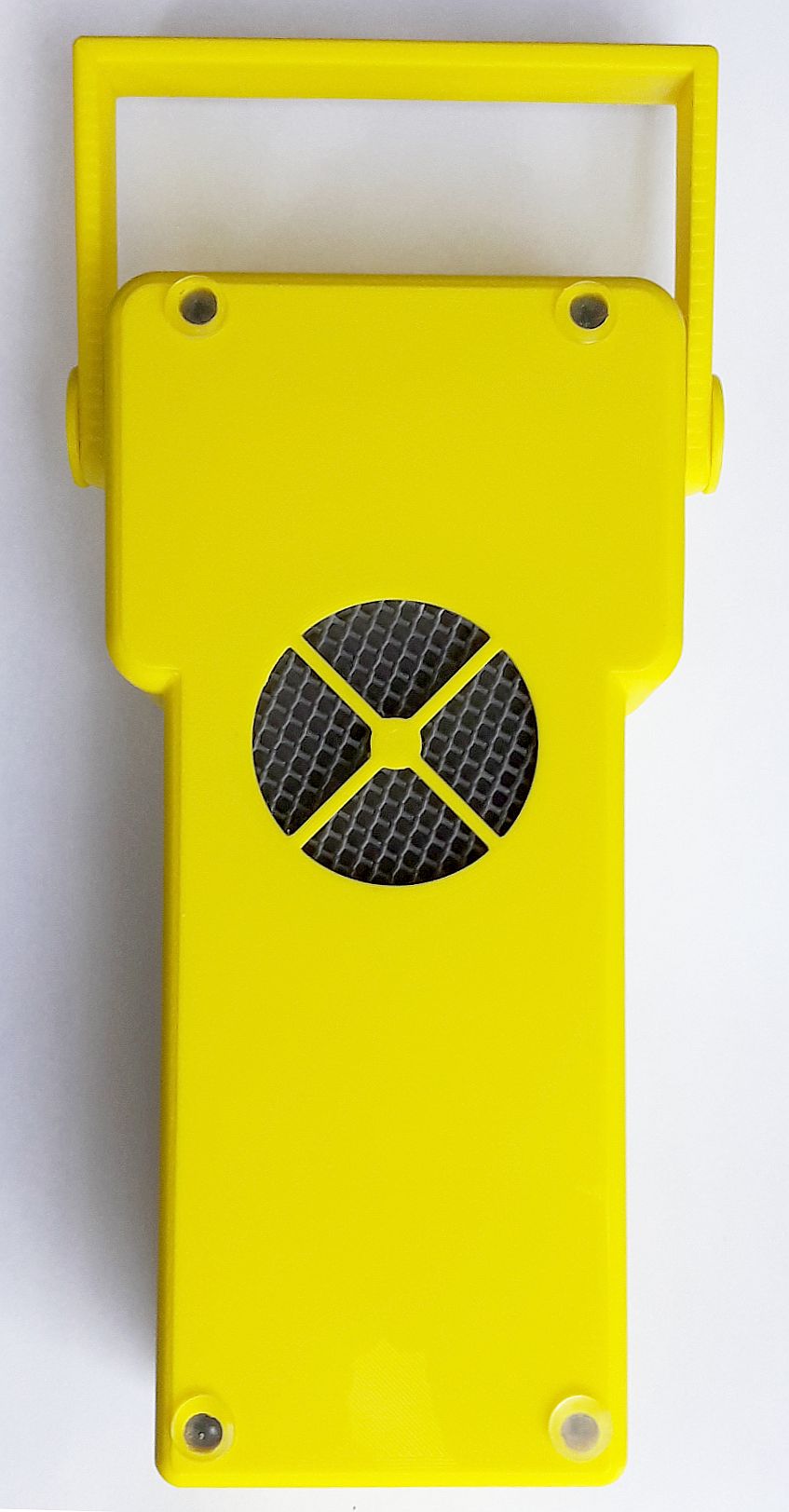

This probe clearly differs from normal Geiger tubes due to its large active surface made up of a thin membrane in very thin mica measuring 45 mm in diameter.. Therefore it is also permeable to Alpha radiation, which due to their corpuscular nature cannot be detected with common probes with metal or borosilicate casing.

Upon request, Guardian Ray Smart is also supplied with an Accredia Calibration Certificate.

The excellent characteristics of this radioactivity meter can be certified at a major certified national calibration center “ACCREDIA” of our trust valid for the purposes permitted by law. The results of these checks, which we have already had performed in previous series, from which this new model derives, they attest without any uncertainty to the excellence of the performances. Therefore we have no problem defining this new model in the series as one of the best Geiger counters ever produced.

Main features:

Professional Geiger Counter Product, sold, guaranteed and assisted in Italy by the same national manufacturer ElettronicaNetwork.

Guardian Ray Smart takes advantage of a new and powerful 32-bit microprocessor with modules WiFi e Bluetooth a 2.4 GHZ integrated. It has a multitude of software functions for the acquisition and processing of radioactivity data. among these we mention: the function Radioactivity dosimeter, which automatically calculates the overall radiation dose to which you are exposed in a given period of time, the function: Rate meter, that is, a special measurement mode that significantly increases the sensitivity and precision of acquisition by lengthening the measurement sampling times.

Regarding the hardware, it has a software-controlled clock unit with date display that updates automatically when the instrument is connected to the internet, ha the rechargeable lithium battery yes 3.7V, and a broad display Touch, 2.8 backlit″ coloured with active matrix, perfectly readable even outside in the presence of sunlight.

E’ also present a buzzer which can be enabled and disabled at will and which emits a “Click” for each particle detected. Furthermore, it can generate a continuous tone if a certain settable radioactivity threshold is exceeded.

There is also a USB interface which in this model is used exclusively for charging the internal lithium-ion battery.

Who is it recommended for?

Our innovative Guardian Ray Smart 7317, considering its professional characteristics we recommend it to the qualified radiation protection expert, to public administrations such as municipalities, the local health authorities for the protection of citizens' health and of course the police to conduct health investigations directly in the area.

We think it could also be useful in research and analysis laboratories, and in particular to companies that import and process products from countries that have been involved in serious nuclear accidents in the past.

In practice we recommend it to anyone who needs to have a multifunctional radioactivity detector, modern, precise and reliable, capable of ascertaining with sufficient precision the levels of ionizing radiation present in the environment, in the ground, in building materials, on some foodstuffs and in general on any product or personal object.

Technical Specifications of the Geiger Guardian Ray Smart 7317.

• Model: Guardian Ray 7317 Smart Professional Geiger Counter with special Geiger Muller Pancake tube made in USA housed internally in the lower part of the instrument.
• Display LCD Touch a colori da 320×240 px”: type 2.8 inch active matrix color tactile graphic LCD with effective resolution of 320×240 pixel.
• Unit of measure: Dose rate in: µSievert /ora, MilliRoentgen/ora, Counts per Second (CPS), Counts per minute (CPM), and Calculation of Accumulated Dose in µSieverts, (all are displayed simultaneously)

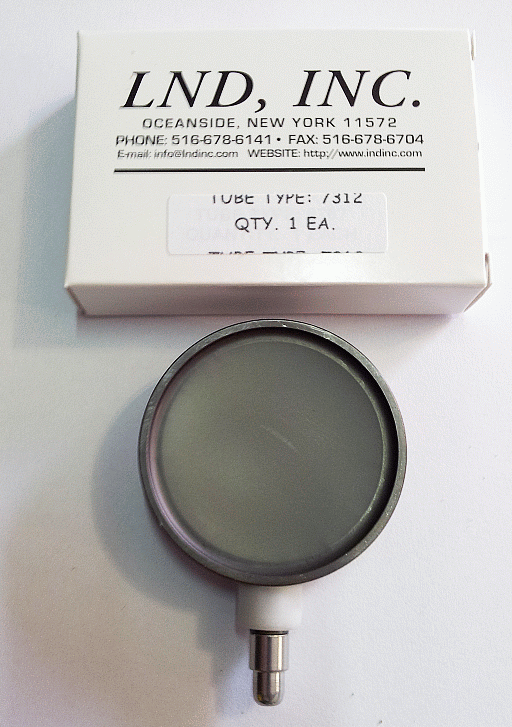

• Type of probe used for detecting radioactivity: Ultra sensitive Pancake type geiger tube made in USA, model: LND-7317, with rear cladding made of thick metal and large front window made of very thin mica. It is filled with a mixture of noble gases + halogens. It is mounted internally to the same instrument with a visible sensitive part. therefore it can easily detect Alpha nuclear radiation, Beta, Gamma and X-rays.

Technical data of the Geiger Muller Pancake LND7317 probe:

• typical sensitivity
  (Co60): 3600CPM @ (mR / h),
  (CS137): 3450CPM / (mR / h)
• Maximum counts per minute in saturation state: ~ 315000 CPM
• Maximum counts in linear zone: =~ 65000 CPM
• Operating temperature: 20° + 60° C
• DC-DC converter for high voltage power supply to the probe:
  Stabilized 500V output with real-time feedback circuit.
• Active Window: circular in shape made of thin mica with a diameter of 45 mm.
• Dose rate sensitivity (uSV):
  approximately 400 pulses/min for a rate of 1 µSv/h referred to the CS-137.
• Types of rays detected:
  2.5 MeV Alpha radiation.
  150 keV Beta radiation.
  Gamma radiation: da 10 keV.
• Efficiency With 4 pi. angle (in contact):
  Alpha radiation Am-241 5.5 MeV circa 18%
  Beta radiation C-14 49 keV avg. 156 keV max. 5.0%,
  Bi-210 390 keV avg. 1.2 MeV max. 30-32%
  Sr-90 546 keV and 2.3 MeV 35-38%
  P-32 693 keV avg. 1.7 MeV max. 35%

Unit of measure:

• µSv/h, MilliRoentgen/h , CPS (Counts per second), CPM (counts per minute)
• Linear measuring range (Radiation mix) in uSv/h /calculated with reference to the physical characteristics of the LND7317 probe) : and 0.01 µSv/h a ~190.00 µSv/h
• Maximum dose returned by the probe when it was in a state of saturation: ~1000uSv/h

Equivalent dose measurement:

• For its measurement, the exclusive detection of Beta and Gamma rays is assumed, with a ratio of 1:1, tra Gray / Sievert, that is to say: 1 gray = 1 sievert
• Dose measurement scale: and 0.01 µSv a oltre 2mSv

Radioactivity measurement method:

• standard: with automatic setting of the acquisition time within a range of 2-4-10-20-30 seconds, which adjusts based on the intensity of the radiation detected.
• Single or average measurement: among all acquired values, Indication of the Maximum Value.
• Rate Meter: High precision measurement mode, which provides a fixed sampling time that can be set from a minimum of 60 to a maximum of 10000 seconds, to be used to discriminate even small levels of radioactivity.
• Realtime histogram: i.e. the tracing of the graph on the trend of radioactivity in real time.

Calibration:

• Guardian Ray Smart 7317 is subjected to various measurement tests directly in our Italian laboratory and under our direct supervision, with calibrated radionuclides of the CO60 – CS137 – SR90 type. Furthermore, on request it can be supplied with a calibration certificate issued by an authorized SIT center such as Enea of ​​Frascati or the Polytechnic of Milan.

Memorization of Measurements:

• The integrated data logger allows saving measurements online on the Cloud and on micro SD memory cards with a maximum capacity of 32GB (not supplied), in practice it allows you to store measurement data complete with date and time of acquisition in real time. The same data is stored in text files that can also be imported into Microsoft Excel or similar applications. Furthermore, the storage interval can be synchronized with the same radioactivity sampling times or set independently from 1 to 10 minutes., (provided that the sampling times themselves are not greater than the Max value. of this interval).
• Transfer of radioactivity data in real time to cloud servers: It is also possible to publish and view radioactivity measurements remotely in real time on the network by relying on clouds available on the network thanks to the instrument's wifi connectivity

CPU processor):

• MCU: ESP32 a 32BIT: with 64Mbit of RAM, Clock Frequency da 80 MHz a 240 MHz, ,typical 160Mhz, with integrated WiFi and Bluetooth.

Certifications

• RF certification FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
  Wi-Fi certification Wi-Fi Alliance
  Bluetooth certification BQB, (Module present but not used)
  Green certification RoHS/REACH
  Test Reliablity HTOL/HTSL/uHAST/TCT/ESD
  Wi-Fi Protocols: 802.11 b/g/n (802.11n up to 150 Mbps)
  A-MPDU and A-MSDU aggregation and 0.4 µs guard interval
  Frequency range 2.4 GHz ~ 2.5 GHz
  Bluetooth: Protocols Bluetooth v4.2 BR/EDR and BLE specification
  Radio: NZIF receiver with –97 dBm sensitivity
  Class-1, class-2 and class-3 transmitter AFH

Other certifications:

• supplied with EMC / RF certificate of conformity to CE regulations on electromagnetic interference

Diet, Autonomy and Consumption:

• Powered by 3.7V – 3000mA/h lithium ion battery
  – Continuous continuous operation autonomy with a full charge from a USB socket of approximately 6/8 hours with screen brightness reduced to 60/40%
  – consumption from 150 to 400mA (under conditions of normal use)

Dimensions:

• Length 200 mm, Minimum width: 75 mm, Max. Width: 97mm, max depth 50mm

Weight:

• Approximately 600 grams including the external probe

Casing:

• Made of sturdy and eco-friendly PETG by 3D printing

Product colours:

• White colour (for other colors contact us)

Recycling:

• The manufacturer may eventually receive the discarded product for disposal
